Compared: Azure Load Balancer, Application Gateway, Traffic Manager

The following table summarizes the features offered by each service:

Service Azure Load Balancer Application Gateway Traffic Manager
Technology Transport level (Layer 4) Application level (Layer 7) DNS level
Application protocols supported Any HTTP and HTTPS Any (An HTTP endpoint is required for endpoint monitoring)
Endpoints Azure VMs and Cloud Services role instances Any Azure Internal IP address or public internet IP address Azure VMs, Cloud Services, Azure Web Apps, and external endpoints
Vnet support Can be used for both Internet facing and internal (Vnet) applications Can be used for both Internet facing and internal (Vnet) applications Only supports Internet-facing applications
Endpoint Monitoring Supported via probes Supported via probes Supported via HTTP/HTTPS GET

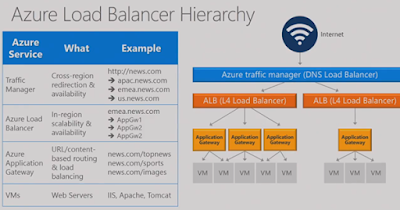

This slide from the Ignite 2016 – Microsoft Azure Networking: New Network Services, Features And Scenarios session summarizes it well
click on image for enlarged view
Traditional load balancers operate at the transport layer (OSI layer 4 - TCP and UDP) and route traffic based on source IP address and port, to a destination IP address and port. But with the Application Gateway you can be even more specific. For example, you can route traffic based on the incoming URL. So if /images is in the incoming URL, you can route traffic to a specific set of servers (known as a pool) configured for images. If /video is in the URL, that traffic is routed to another pool optimized for videos.

Also see:
Options for Load Balancing Services in Azure
Azure Application Gateway - Highlights
